On-Grid Solar System Solution

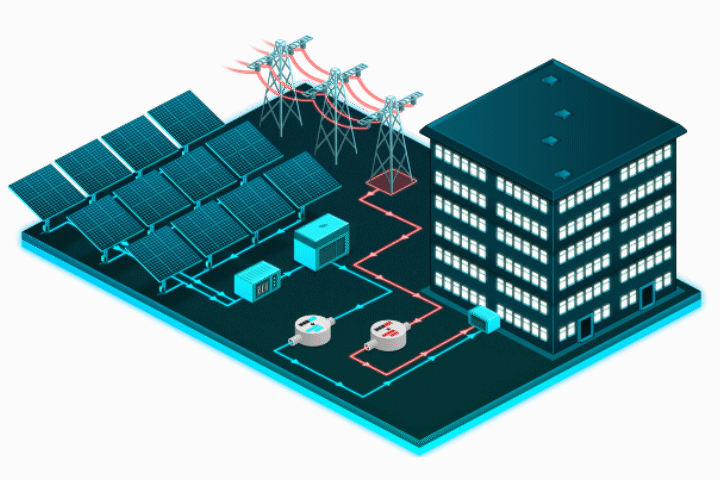

QEOS ENERGY’s core offering are cost-effective, reliable and practical solar hybrid systems. We build these systems by synchronizing our modular, transportable solar solutions with the current utility provider. In a typical configuration the solar system shaves off part of the peak maximum demand, while the on-grid power guarantees reliable power 24/7, even when the sun isn’t shining. Our Designs are scalable and can be deployed as a solar carpark to a Large Scale Solar Farm.

System Specifications

Cell Properties(Material / Type)	Monocrystalline / N-type
Cell Maker	LG
Cell Configuration	72 Cells (6 x 12)
Number of Busbars	12EA
Module Dimensions (L x W x H)	2,024mm x 1,024mm x 40 mm
Weight	20.3 kg
Glass(Material)	Tempered Glass with AR Coating
Backsheet(Color)	White
Frame(Material)	Anodized Aluminium
Junction Box(Protection Degree)	IP 68
Cables(Length)*	1,200 mm x 2EA
Connector(Type / Maker)	MC4 Compatible

Cell Properties(Material / Type)	Monocrystalline / P-type
Cell Configuration	144 Cells (6 x 24)
Number of Busbars	9EA
Module Dimensions (L x W x H)	2,115 mm x 1,052mm x 40mm
Weight	22.3kg
Glass(Material)	Tempered Glass with AR Coating
Backsheet(Color)	White
Frame(Material)	Anodized Aluminium
Junction Box(Protection Degree)	IP 68
Cables(Length)*	1,300mm x 2EA
Connector(Type / Maker)	MC4/05-8

Data Sheet	MIC 750TL-X	MIC 1000TL-X	MIC 1500TL-X	MIC 2000TL-X	MIC 2500TL-X	MIC 3000TL-X	MIC 3300TL-X
Input Data (DC)
Max. recommended PV power (for module STC)	1050W	1400W	2100W	2600W	2800W	3500W	4290W
Max. DC voltage	500V	500V	500V	500V	500V	500V	500V
Start voltage	50V	50V	50V	50V	80V	80V	80V
Nomind voltage	120V	180V	250V	360V	360V	360V	360V
MPP voltage range	50V-500V	50V-500V	50V-500V	50V-500V	65V-500V	65V-500V	65V-500V
No. of MPP trackers				1
No. of PV strings per MPP tracker				1
Max. Input current per MPP tracker				13A
MAx. short-circuit current per MPP tracker				16A

Data Sheet	MID 15TL3-X	MID 17KTL3-X	MID 20KTL3-X	MID 22KTL3-X	MID 25KTL3-X
Input Data (DC)
Max. recommended PV power (for module STC)	20500W	2550W	30000W	33000W	37500W
Max. DC voltage			1100V
Start voltage			250V
Nomind voltage			580V
MPP voltage range			160V-1000V
No. of MPP trackers			2
No. of PV strings per MPP tracker	2	2	2	2	2/3
Max. Input current per MPP tracker	25A	25A	25A	25A	25A/37.5A
MAx. short-circuit current per MPP tracker	32A	32A	32A	32A	32A/48A

Data Sheet	MIN 2500TL-X	MIN 3000TL-X	MIN 3600TL-X	MIN 4200TL-X	MIN 4600TL-X	MIN 5000TL-X	MIN 6000TL-X
Input Data (DC)
Max. recommended PV power (for module STC)	3500W	4200W	5040W	5880W	6440W	7000W	8100W
Max. DC voltage	500V	500V	550V	550V	550V	550V	550V
Start voltage				100V
Nomind voltage				360V
MPP voltage range	80V-500V	80V-500V	80V-550V	80V-550V	80V-550V	80V-550V	80V-550V
No. of MPP trackers				2
No. of PV strings per MPP tracker				1
Max. Input current per MPP tracker				12.5A
MAx. short-circuit current per MPP tracker				16A

On-Grid Solar System Solution

System Specifications

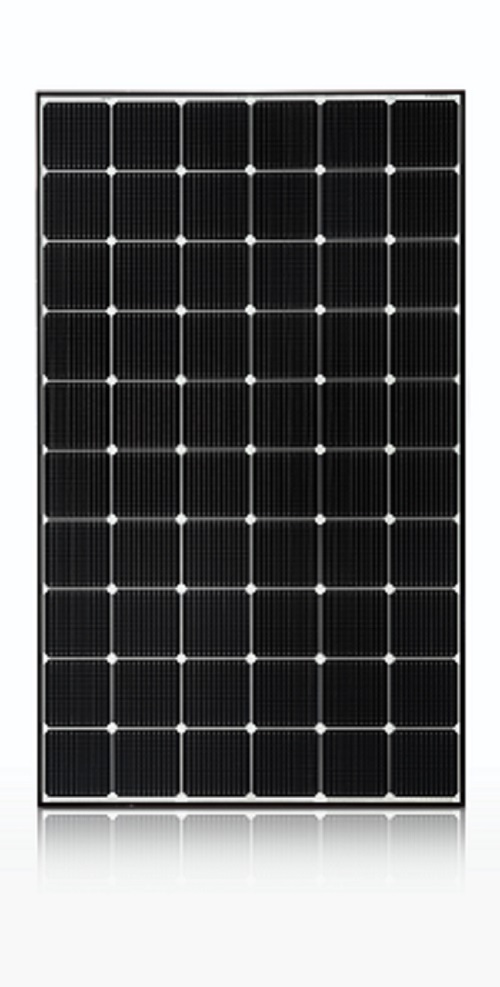

Solar Panel - Neon

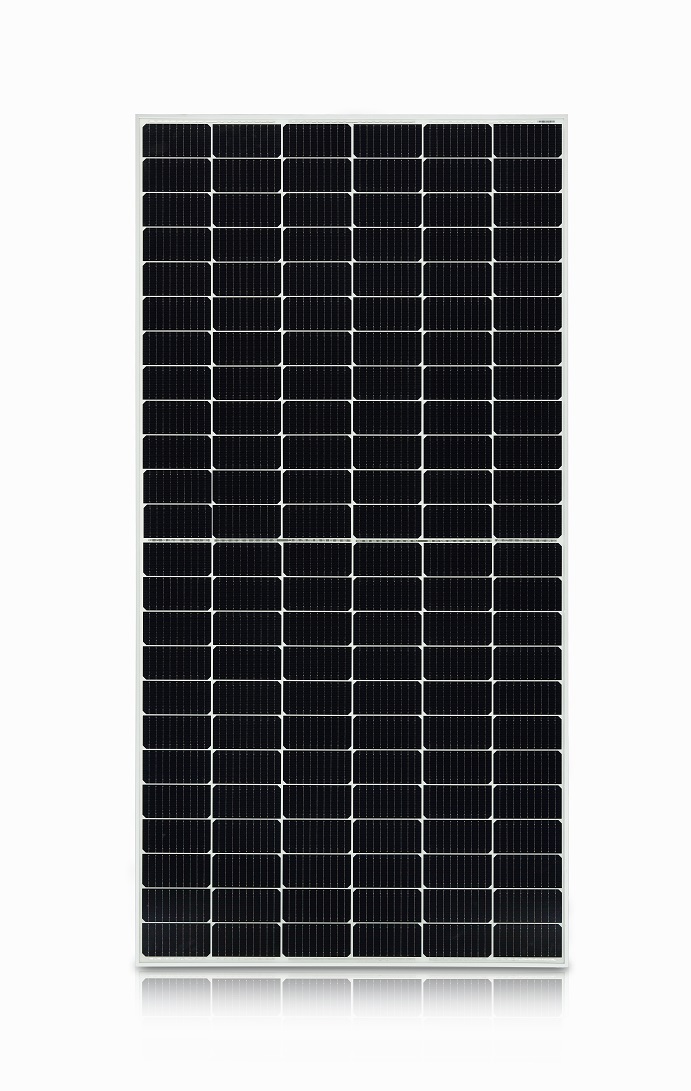

Solar Panel – Mono X

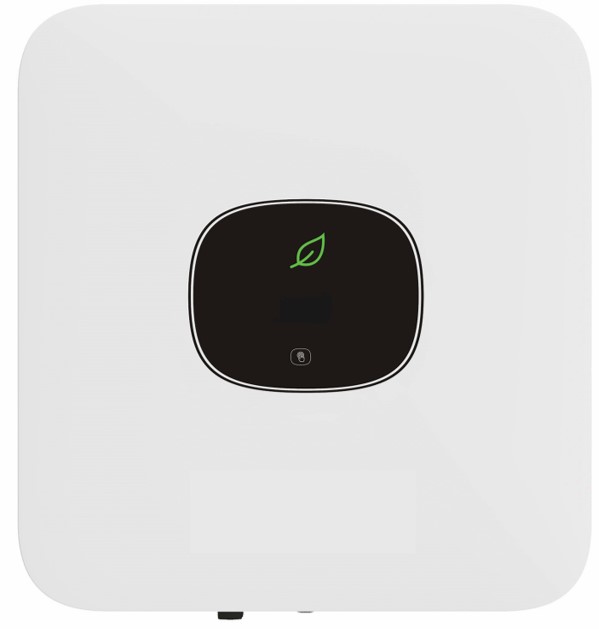

Residential Inverter - MIC 750-3300TL-X

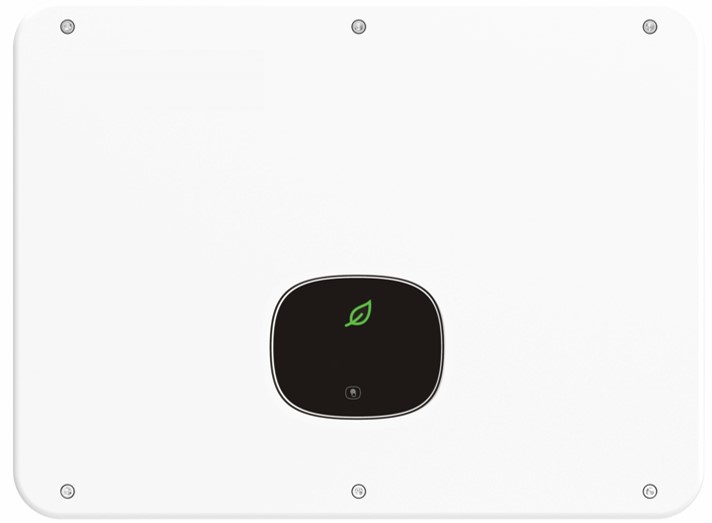

Residential Inverter - MID 15-25KTL3-X

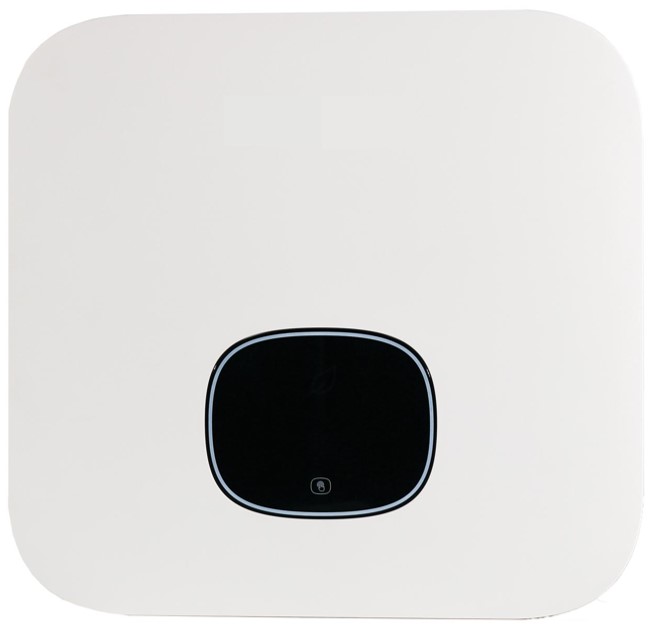

Residential Inverter - MIN 2500-6000TL-X
